Description

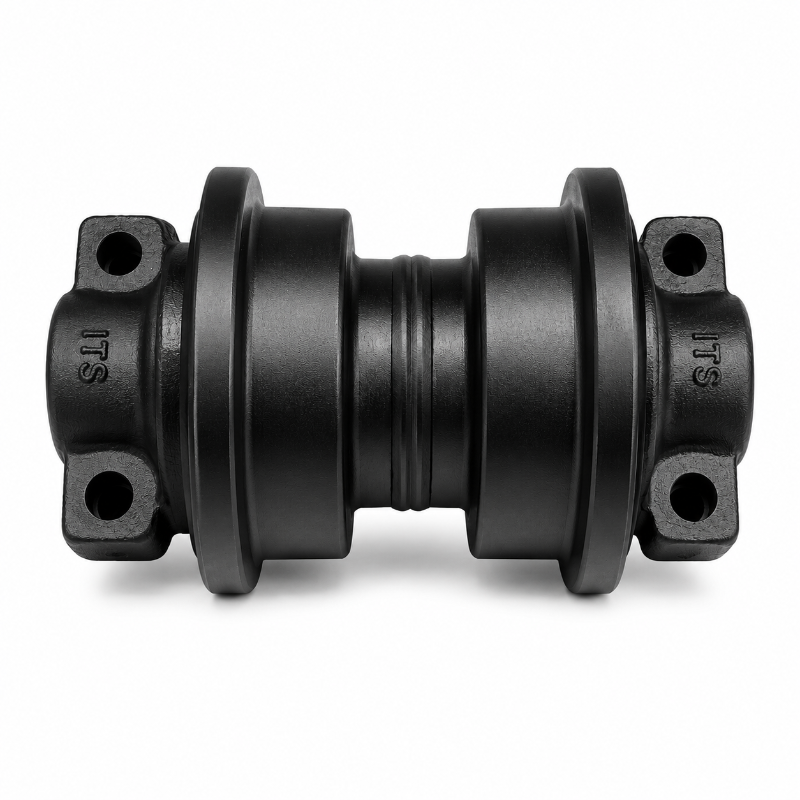

The 1787288 S/F Lower Roller is a single flange roller group designed for the Cat 365 undercarriage system. Important: the 365 roller does NOT interchange with the 375/385 roller. The 365 roller measures 178mm from the frame mounting surface to the running surface; the 375/385 measures 193mm (approx. 5/8" difference). Mixing rollers will create an uneven running surface and cause premature wear on the larger diameter roller.
| Product Specifications | |
|---|---|
| SKU | 1787288 |
| OEM # | 1787288 |
| Model | 365 |
| Type | Single Flange (S/F) |
| Bolt Hole | 30mm |
| Bolt Hole Pattern | 490 x 160 |
| Running Surface Diameter | 230mm |
| Frame-to-Running Surface | 178mm |
| Item Weight | 300.00 lbs |
| Set Quantity | 16 |
| Category | Lower Roller Groups & Shells |
